The SAMSCREEN amplitude gauge has a number of circles, each depicting a certain amplitude in mm. Place this magnetic gauge on the screen box or most any place on the side of your vibratory screening machine. Read off the actual amplitude in mm with the vibratory machine running. Expect different readings when the machine is either full or empty of material.

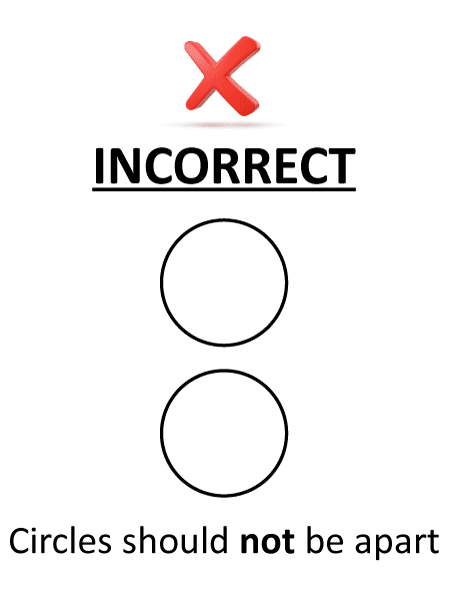

This gauge is for two vibrator motors that are not mechanically connected and are independently running. Place this gauge anywhere on the side of the machine. Read the number in mm next to the two circles touching for the amplitude of the machine.
